Body

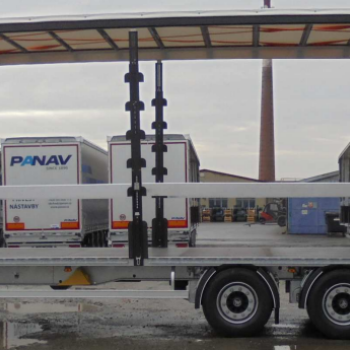

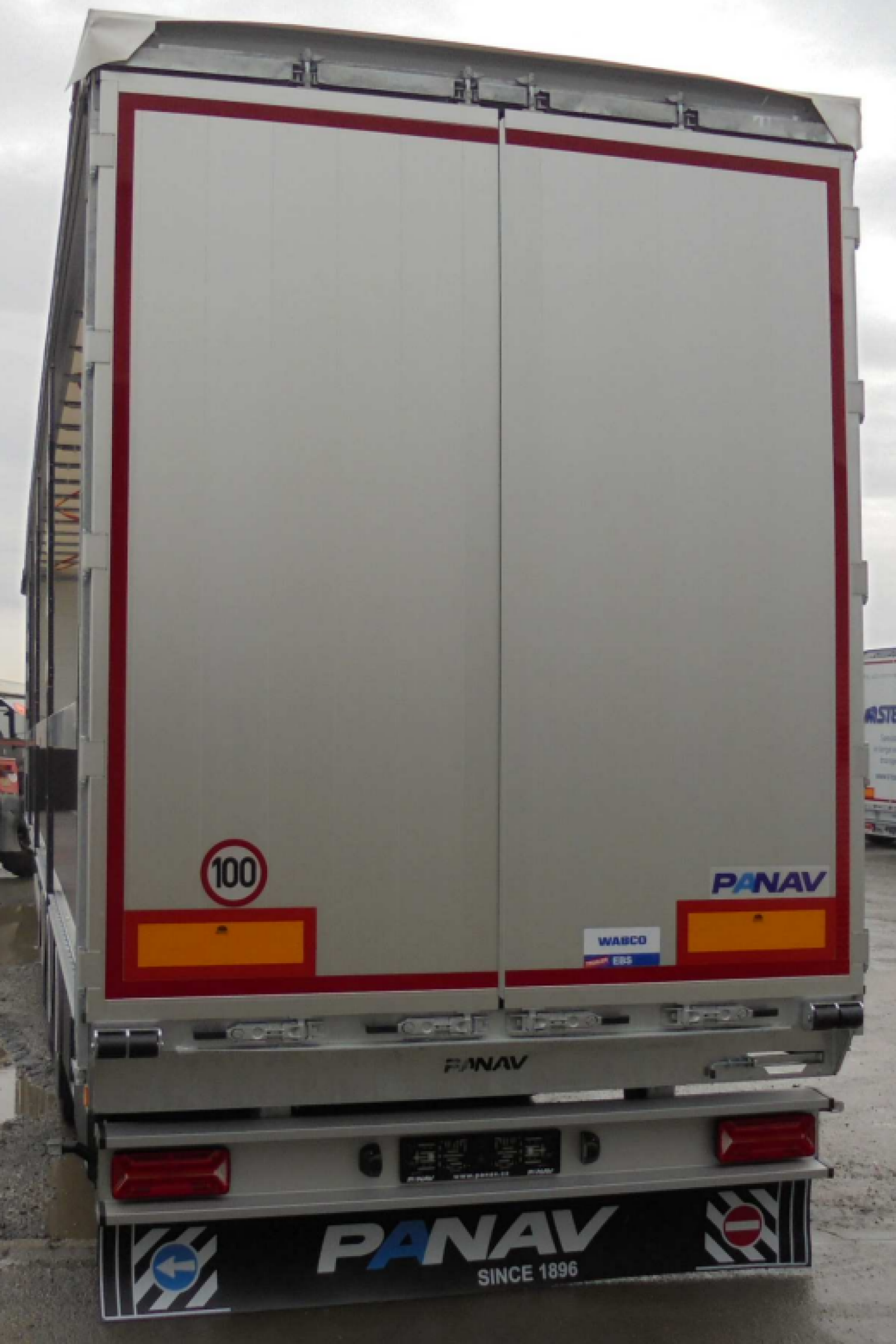

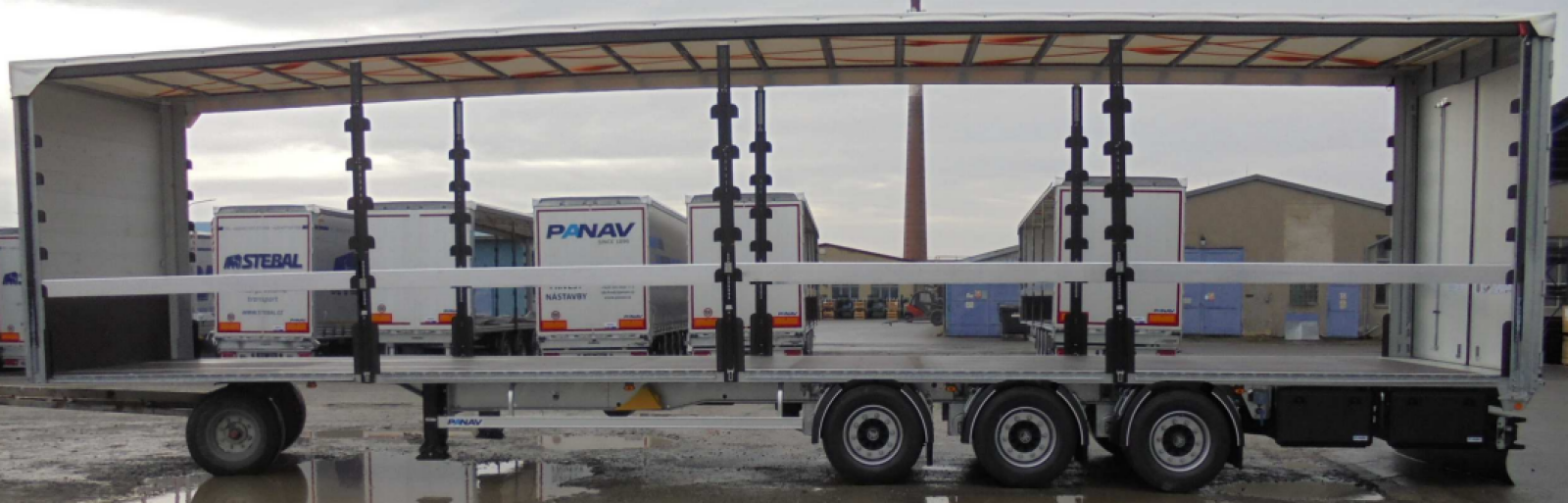

Aluminum front end, one pair of anchor elements in the front end according to EN 12 640, trench plywood 9 mm, height 650 mm, steel corner posts, three-part summarizing sheet, Hestal folding posts (3 pairs), rear door, lifting sheet structure, two-level roof , customs cable, lever roof lift
Body design
EN 12 642 XL certificate
Floor
Waterproof hardened plywood thickness 27 mm with non-slip surface transversely undivided, steel edge profile (perforated with the possibility of courting), in the first field courting bar type "C", extension of the rear face of the frame
Frame
Steel ladder construction, construction height of the neck 85 mm, hot-dip galvanized, plastic mudguards + antispray, boarding retractable steps
Tires
6 tires 445/45 R 19.5" CONTINENTAL
Brake connection
2 pcs of coupling heads (filling and control)
Chassis
BPW air-suspended axle assemblies, disc brake 19.5", 1st lifting axle - serves only as a start-up aid
El. connection
Electrical socket 1 x 15 poles
Side tarpaulins + battens
It will be supplemented according to the customer's wishes
Installation
Two-hose air-pressure brake equipped with automatic load regulator, lifting/lowering of the loading area (Colas), 2 pcs of clutch heads (filling and control), according to EHK 13.11, EBS, RSS brand WABCO, smartboard, tire pressure monitoring - only "IDEM" valves
